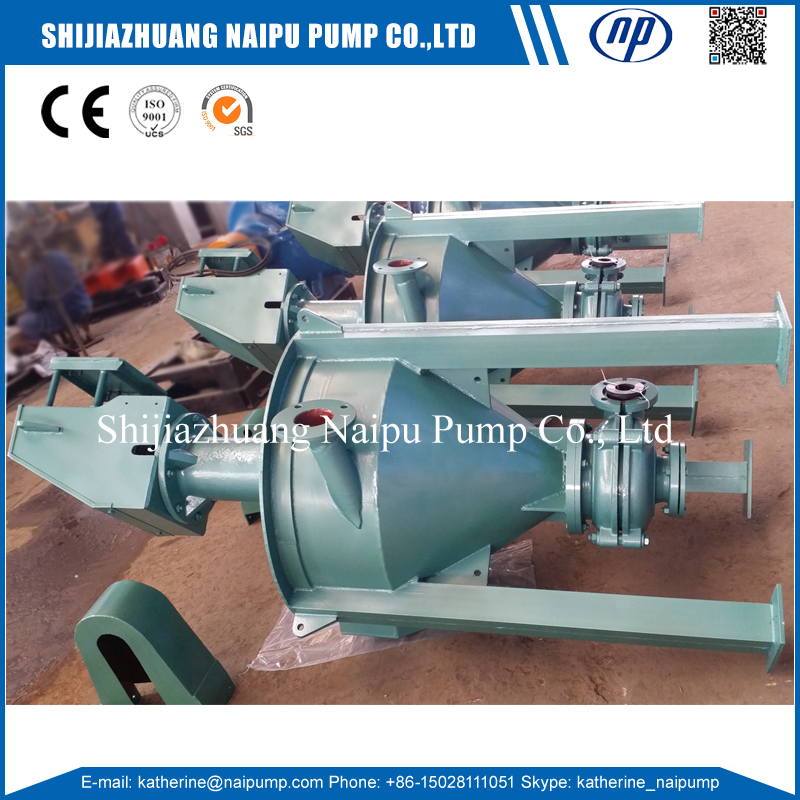

2AFPV Froth Slurry Pump for Mining Plant

AF froth pump have a vertical shaft configuration, and comprise a hopper, with vertical Bearing Assembly, and Type `AH` pump wet-end. 2AF Froth Slurry Pump feature a wide choice of replaceable abrasion resistant metal or moulded elastomer casing liners and Impellers. Froth Pump with Tank, Froth Tank Slurry Pump, Vertical Froth Pump, 2AF Froth Slurry Pump, 2AF-PV Froth Slurry Pump, 2PV-AF Froth Pump.

Important design features of this range of Naipu Slurry Pumps include:
· Cartridge type Bearing Assembly
· Heavy duty screw thread Impeller attachment
· Through-bolt design throughout
· Replaceable casing liners
· Choice of a range of metal or elastomer liners and impellers
· Minimum number of casing bolts

2af Qv Froth Pumps

Froth Tank Slurry Pump Wear/ Erosion Resistant Material

Various requirement for materials in the market, Naipu offering wet end part material as following. Metal A05, A07, A12, A33, A49, A61 and etc. Rubber R08, R26, R33, R55, S01, S21, S31, S42 and etc. Special materail: U01, EPDM, PU, CR, Hastelloy 276-C, Ferralium and etc.
2af Qv Froth Mining Pump

AF Froth Slurry Pump Performance Parameters

Type

Allowable Mating

Max. Power(Kw)

Clear Water Performance

Impeller

Capacity/Q m³/hr

Head/m

Speed/rpm

Max Efficiency/%

Diameter/mm

2AF-QV

15

7.2-33

5--30

800-1800

45%

229

3AF-QV

20

10-104

10--28

700-1500

55%

268

4AF-RV

40

15-130

6--28

500-1050

55%

397

6AF-SV

75

55-330

6--25

350-680

55%

560

AF Slurry Pump PartsWarman froth pump

Froth Pump with Tank Main Part Number at the Drawing

1.Bearing
2.Bearing Assembly
3.Tank
4.Frame Plate
5.Cover Plate

 Part Code No.: E4032G01, E4013G01, DAF4041A05, DAF4127A05, DAF4190A05, RVAF019, RVAF133-3, RVAF073, RV262...


Naipu Service

1. OEM service: Produce the pump and spare parts according to client's drawing or sample.

2. Selection service: Help customers select the type, size and operating speed of pumps that will perform at the lowest cost.

3. Using service: Offer Design, Installation, Repair and Maintenance solutions and Mine measuring up service.

4. Material service: Interchangeable metal design allow best material choice for any application.

5. After-sale service: Provide lifetime after sale service to solve any question during uses and large stock for standard spare parts.

Any question please contact Katherine Hou freely.

Slurry Pump Contact

  Advertisements



Posted by James wang
e-MailContact company
Company
Shijiazhuang Naipu Pump Co., Ltd.
Address HebeiShijiazhuangNo.368 xinshi North Road
City & ZIP
Shijiazhuang050000
Country
China
Phone
For registered Members only.
Fax
For registered Members only.
Key Customers / Clientele tradegroup in euroup
Company Profile Shijiazhuang Naipu Pump Co.,Ltd is a professional manufacturing enterprise of slurry pumps located in high and new technology development zone. The enterprise has one group of high quality technical and management talent working in Design, R & D, Production, Sales and Services. The technical team consists of talents specialized in hydraulic machinery, casting, heat treatment, engineering, material science and machining.
The company manufactures its products using advanced technique based on well built management and sales & service system. Product quality is guaranteed with various test and inspection facilities..
Naipu is specialized in the manufacture and sales of slurry pump and pump parts, especially the design and manufacture of products made with high abrasive, anti corrosive rubber material, including NP-AH(R).NP-M.NP-HH.NP-SP(R).NP-G series slurry pump, NP-ZG.NP-ZJG series slurry pump, NP-WS series dredging pump and NP-PNJ series slurry pump.
The products are widely used in mining, power, metallurgy, coal, dreading, building material and other Industrial lines to pump concentrate, tailings, sludge and other abrasive, high density slurries.
Meeting customers` technical requirements and with a long lifespan, lower cost and high safety, our products are sold well all over of china and far to southeast Asia, Noth America, South America,Russia and etc.
We are confident that we can offer customers satisfying products and services with our continuous efforts in product research and improvement. We look forward to working with customers domestic and abroad to build a promising future.
We can develop and produce a range of pumps according to different media situation to meet different duty requirment.
There are rubber material (R08 , R12, R26, R33, R38, R55, S03,S12,S31,S21,S51,S52 U01 and etc) , wear resistant metal material( A05,A07, A33, A49, A61 and etc) ,Corrosion Resistant stainless steel material (201,304, 316, 316lL and etc ) , fully meet customers` request.
We can undertake various OEM orders for pumps as well as spare parts customized according to drawings or samples.
