2 / 1.5 B- AH Heavy Duty Small Slurry Pumps

2 / 1.5 B- AH Heavy Duty Small Slurry Pumps are single stage  single suction slurry pumps.

2 / 1.5 B- AH Heavy Duty Small Slurry Pumps are  used for transporting  high density slurries in the metallurgical, mining , coal, power, building material and other industrial department etc.

 2 / 1.5 B- AH Heavy Duty Small Slurry Pumps Can be  installed in multistage series.

The  Wet end parts  for  2 / 1.5 B- AH Heavy Duty Small Slurry Pumps have replaceable wear-resistant metal liners or rubber liners.

Gland seal ,expeller seal or Mechanical Seal  is available for 2 / 1.5 B- AH Heavy Duty Small Slurry Pumps

The outlet of the pump can be installed at eight directions  intervals of 45 °within 360°

Description

Index

Value

Products Name

 2 / 1.5 B- AH Heavy Duty Small Slurry Pumps

Inlet Dia (mm) 50
Outlet Dia (mm)
40

Flow (m3/h)

32.4 - 72

Head (m)

6 - 58

Max Power(kw)

15

Material

High Chrome A05

Drive Type

 CV / ZVz / CRz/ DCz

Drive Engine  Motor or Diesel

Seal Type

Packing Seal , Expeller Seal, Mechanical Seal

MQQ

1 set

Payment Term

TT , LC, or Negotiate

Original

ShiJiaZhuang , Hebei China

Supply Range

Slurry Pump , Motor , Base Plate,Guard, v-belt , Pulley

Weight (KG)

104kg

Delivery Term

By Sea, By air , By TNT, DHL , By Train

2 / 1.5 B AH Heavy Duty Small Slurry Pump Performance Parameters

Type

Allowable Mating Max. Power(Kw)

Clear Water Performance

Impeller

Capacity/Q m³/hr

Head/m

Speed/rpm

Max Efficiency/%

NPSH/m

Nos of Vane

Impeller Diameter/mm

1.5X1-NP-AH

15

12.6--28.8

6--68

1200--3800

40

2--4

5

152

2X1.5-NP-AH

15

32.4--72

6--58

1200--3200

45

3.5--8

5

184

3X2-NP-AH

30

39.6--86.4

12--64

1300--2700

55

4--6

5

214

4X3-NP-AH

30

86.4--198

9--52

1000--2200

71

4--6

5

245

6X4-NP-AH

60

162--360

12--56

800--1550

65

5--8

5

365

8X6-NP-AH

300

360--828

10--61

500--1140

72

2--9

5

510

10X8-NP-AH

560

612--1368

11--61

400--850

71

4--10

5

686

12X10-NP-AH

560

936--1980

7--68

300--800

82

6

5

762

14X12-NP-AH

560

1260--2772

13--63

300--600

77

3--10

5

965

16X14-NP-AH

1200

1368--3060

11--63

250--550

79

4--10

5

1067

18X16-NP-AH

1200

2520--5400

13--57

200--400

85

5--10

5

 1370

























Horizontal Centrifugal Pump Construction Drawing

Rubber Slurry Pump Parts


Metal Construction


Main Part Number At The Drawing


032:Frame Plate
060: Intake Joint
132:Discharge Joint
083:Throatbush
110:Volute Liner
147: Impeller
122: Stuffing Box Seal
036: Frame Plate Liner
013:Cover Plate
018:Cover Plate Liner
124: Volute Cover Seal
041: Frame Plate Liner Insert



Materials of Construction




LINERS

IMPELLERS

CASING

BASE

EXPELLER

EXPELLER RING

SHAFT SLEEVE

SEALS

Standard

Chrome Alloy
Natural Rubber

Chrome Alloy
Natural Rubber

SG Iron

SG Iron

Chrome Alloy
or
SG Iron

Chrome Alloy
or
SG Iron

SG Iron

Rubber
and
Nitrile

Options

Ferralium
Hastelloy C
316 SS
W151
Polyurethane
Neoprene
Butyl
Viton
Nitrile
EPDM
Hypalon

Ferralium
Hastelloy C
316 SS
W151
Polyurethane
Neoprene
Butyl
Nitrile
Hypalon

SG Iron
Various grades

MS
Fabricated
Cast Iron

NI Resist
Ferralium
Hastelloy C
Polyurethane
316 SS
W151

NI Resist
Ferralium
Hastelloy C
316 SS
Rubber
W151
Polyurethane
Neoprene
Butyl
Nitrile

EN56C
Ferralium
Hastelloy C
Titanium
316 SS
304 SS

Ceramic
Stellite
Chrome Oxide
Nordel
Neoprene
Viton

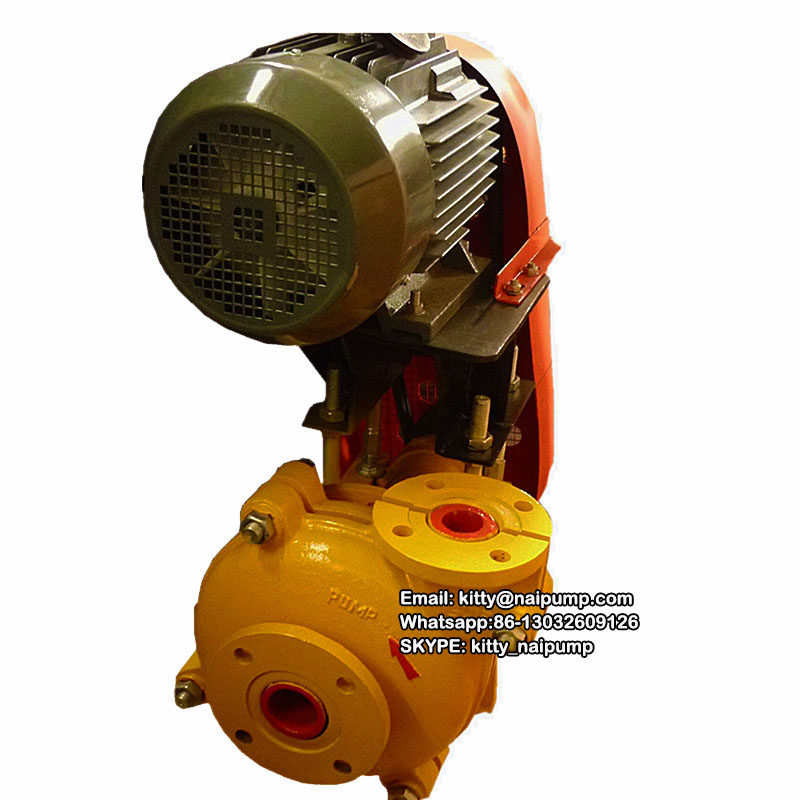

2/1.5  B - AH Heavy Duty Small Slurry Pump  Picture

2-1.5-metal liner


2-1.5-metal liner 2



If you have any questions, please contact with us directly.   2/1.5 B- AH Slurry Pump  are produced by  ShiJiaZhuang NaiPu Pump Co.,

With High Quality and Good Appearance. Welcome you can visit our Factory.For inqury,Please send mail directly to us :  kitty at naipump dot com
