1. Introduction of Slurry Pump Part D3036HS1

The type of  AH  slurry pumps are using for handing strong abrasive, high density slurry and low density, high head slurry in the metallurgical, mining, coal, power, building material and other industry departments etc.

The frame plate liners for S AH series pumps have replaceable wear-resistant metal liners. The impellers are made of wear- resistant metal.The frame plate liner and impeller for S AH pump are adoptable of hard metal only.
Bearing assembly assembly use cylindrical structure, which helps adjust the space between impeller and cover plate liner easily, and being removed completely when being repaired. are adoptable of hard metal only. which helps adjust the space
between impeller and cover plate liner easily, and being removed completely when being repaired. Bearing use grease lubrication. The shaft seal could use the packing seal, centrifugal seal and mechanical seal.
The discharge side can be positioned at intervals of 45 degrees by request and oriented to any eight directions to suit installations here are the drive types, include V belt drive, gear reducer drive, fluid coupling drive, and frequency conversion drive devices. Wide performance, good npsh and high efficiency, the pump of this type may be installed in multistage series to meet the delivery for long distance.

AH Slurry Pumps Impellers,slurry pump Frame plate liner part code,Warman Cover Plate Liner D3036HS1: B1036HS1, B15036HS1, C2036HS1, D3036HS1, E4036HS1, F6036HS1, G8036HS1, G10036HS1, G12036HS1, H14036HS1...



1) Materialof slurry pump metal parts and slurry pump rubber parts: A03, A04, A05, A06, A07, A12, A14, A25, A33, A49, A51, A61, Cr24, Cr26, Cr27, Cr30, Cr28, Cr36, W1, W2, NA, Cr15Mo3, R08, R24, R26, R33, R38, R55, R66, S01, S10, S12, S21, S31, S42, S44, S50, U01, EPDM, PU, CR...

2) Shaft material: 45#, 40Cr, SS304, SS315...

3) Shaft sleeve material: 3Cr13, 4Cr13, SS304, SS316...

4) Lantern ring material: 304, 316,  PTFE, Cu...

5) Bearing housing/ bearing end cover material: G01, D21...

6) Wet end part material: A05, A07, A49, A51, A33, A61, R08, R26, R33, R38, R55, S01, S12, S21, S42, S50, U01, EPDM, PU, CR.



2. Metal AH slurry pumps and slurry pump rubber parts and slurry pump metal parts:


Metal slurry pump parts

Rubber AH slurry pumps and parts

rubber slurry pump parts

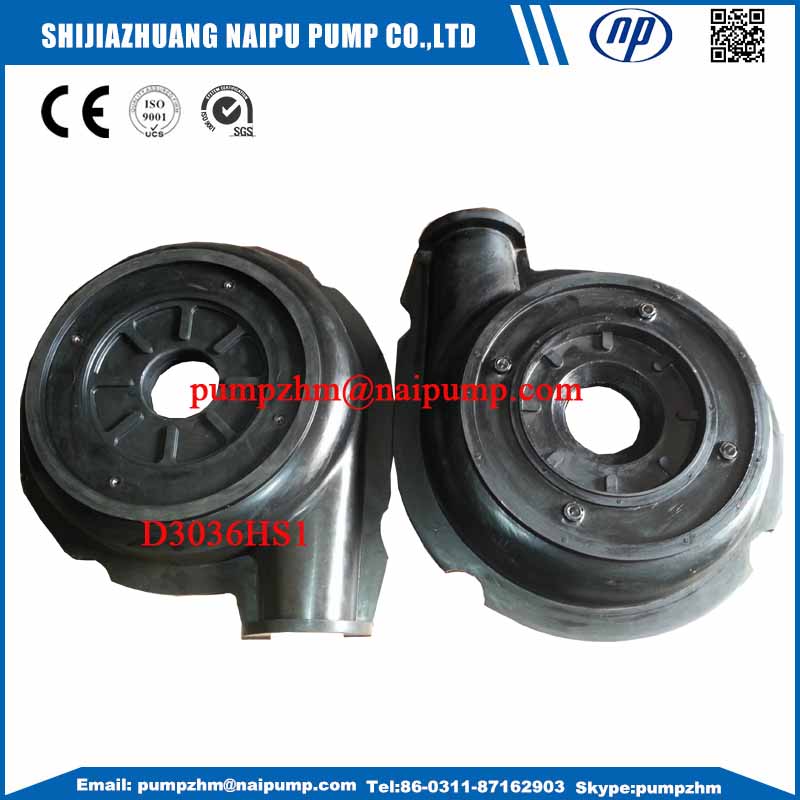

Pictures of cover plate liner and frame plate liner D3036HS1

d3036hs1



  Advertisements



Posted by James wang
e-MailContact company
Company
Shijiazhuang Naipu Pump Co., Ltd.
Address HebeiShijiazhuangNo.368 xinshi North Road
City & ZIP
Shijiazhuang050000
Country
China
Phone
For registered Members only.
Fax
For registered Members only.
Key Customers / Clientele tradegroup in euroup
Company Profile Shijiazhuang Naipu Pump Co.,Ltd is a professional manufacturing enterprise of slurry pumps located in high and new technology development zone. The enterprise has one group of high quality technical and management talent working in Design, R & D, Production, Sales and Services. The technical team consists of talents specialized in hydraulic machinery, casting, heat treatment, engineering, material science and machining.
The company manufactures its products using advanced technique based on well built management and sales & service system. Product quality is guaranteed with various test and inspection facilities..
Naipu is specialized in the manufacture and sales of slurry pump and pump parts, especially the design and manufacture of products made with high abrasive, anti corrosive rubber material, including NP-AH(R).NP-M.NP-HH.NP-SP(R).NP-G series slurry pump, NP-ZG.NP-ZJG series slurry pump, NP-WS series dredging pump and NP-PNJ series slurry pump.
The products are widely used in mining, power, metallurgy, coal, dreading, building material and other Industrial lines to pump concentrate, tailings, sludge and other abrasive, high density slurries.
Meeting customers` technical requirements and with a long lifespan, lower cost and high safety, our products are sold well all over of china and far to southeast Asia, Noth America, South America,Russia and etc.
We are confident that we can offer customers satisfying products and services with our continuous efforts in product research and improvement. We look forward to working with customers domestic and abroad to build a promising future.
We can develop and produce a range of pumps according to different media situation to meet different duty requirment.
There are rubber material (R08 , R12, R26, R33, R38, R55, S03,S12,S31,S21,S51,S52 U01 and etc) , wear resistant metal material( A05,A07, A33, A49, A61 and etc) ,Corrosion Resistant stainless steel material (201,304, 316, 316lL and etc ) , fully meet customers` request.
We can undertake various OEM orders for pumps as well as spare parts customized according to drawings or samples.
