1. Medium Solid Slurry Pump introduction

M medium solid slurry pump are the most comprehensive range of centrifugal slurry pump for use in mining, chemical and general industry applications. The horizontal slurry pumps are designed for Medium duty applications such as mill discharge, power sector and tailings as well as specialty applications, which are used for continuous pumping of high abrasive, high density slurry.

Typical Applications of Medium Solid Slurry Pump,SC Horizontal Slurry Pumps,10/8E-M Horizontal Slurry Pumps---

Dense media transfer
Dense media make-up
Bottom boiler and fly ash
Ferrosilicon make up
Thickener underflow

Dewatering

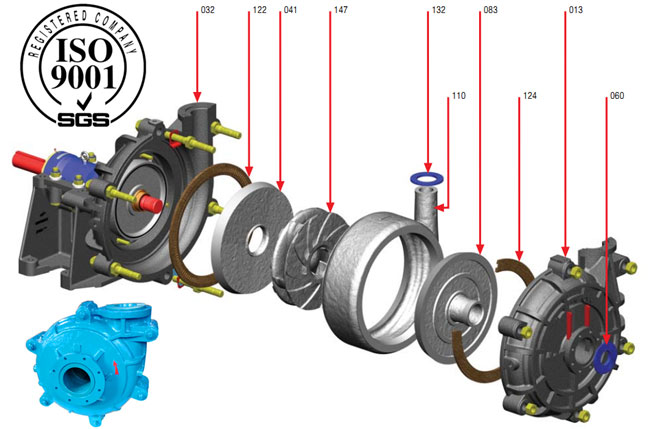

2. 10/8E-M Horizontal Slurry Pumps construction drawing:

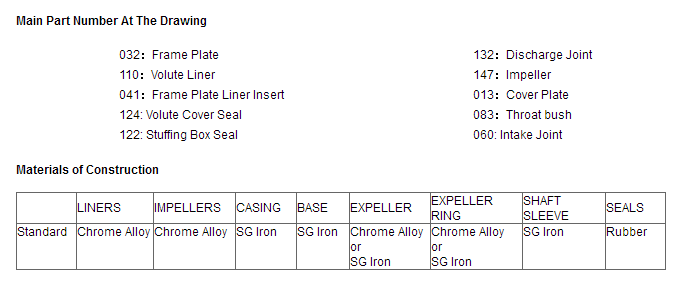

Construction component

Main part No.


3. Performance Parameters OF 10/8E-M Horizontal Slurry Pumps


Type Allowable Mating Max. Power(Kw) Clear Water Performance Impeller
    Capacity/ m³/hr Head/m Speed/rpm Max Efficiency/% NPSH/m Nos of Vane Diameter/mm
10X8E-NP-M 120 540-1228 15-61 600-1100 70 4.5-8 4 549


4.. Naipu series centrifugal slurry pump is designed and built to the highest industry standards . It is widely used to transport solids and liquids across many industries , such as in mining , dredging, chemical engineering, and electric power plants to name a few . At Naipu we strive to satisfy the production, serviceability and durability requirements of the customers and the quarrying , mineral processing, and dredging applications . Our aim is to help customers achieve the lowest pumping operation cost per hour , or the lowest operating cost per ton.

  Advertisements



Posted by James wang
e-MailContact company
Company
Shijiazhuang Naipu Pump Co., Ltd.
Address HebeiShijiazhuangNo.368 xinshi North Road
City & ZIP
Shijiazhuang050000
Country
China
Phone
For registered Members only.
Fax
For registered Members only.
Key Customers / Clientele tradegroup in euroup
Company Profile Shijiazhuang Naipu Pump Co.,Ltd is a professional manufacturing enterprise of slurry pumps located in high and new technology development zone. The enterprise has one group of high quality technical and management talent working in Design, R & D, Production, Sales and Services. The technical team consists of talents specialized in hydraulic machinery, casting, heat treatment, engineering, material science and machining.
The company manufactures its products using advanced technique based on well built management and sales & service system. Product quality is guaranteed with various test and inspection facilities..
Naipu is specialized in the manufacture and sales of slurry pump and pump parts, especially the design and manufacture of products made with high abrasive, anti corrosive rubber material, including NP-AH(R).NP-M.NP-HH.NP-SP(R).NP-G series slurry pump, NP-ZG.NP-ZJG series slurry pump, NP-WS series dredging pump and NP-PNJ series slurry pump.
The products are widely used in mining, power, metallurgy, coal, dreading, building material and other Industrial lines to pump concentrate, tailings, sludge and other abrasive, high density slurries.
Meeting customers` technical requirements and with a long lifespan, lower cost and high safety, our products are sold well all over of china and far to southeast Asia, Noth America, South America,Russia and etc.
We are confident that we can offer customers satisfying products and services with our continuous efforts in product research and improvement. We look forward to working with customers domestic and abroad to build a promising future.
We can develop and produce a range of pumps according to different media situation to meet different duty requirment.
There are rubber material (R08 , R12, R26, R33, R38, R55, S03,S12,S31,S21,S51,S52 U01 and etc) , wear resistant metal material( A05,A07, A33, A49, A61 and etc) ,Corrosion Resistant stainless steel material (201,304, 316, 316lL and etc ) , fully meet customers` request.
We can undertake various OEM orders for pumps as well as spare parts customized according to drawings or samples.
