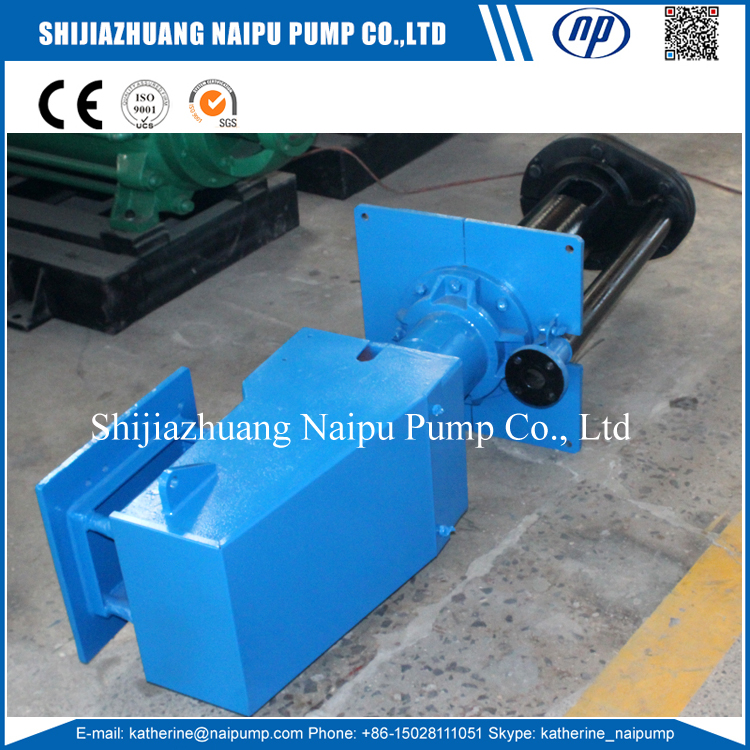

40PVSPR Rubber Lined Mining Sump Pump

SPR rubber Vertical Slurry Pump Materials - Pumps can be manufactured in abrasive and corrosive resistant materials.

Small Sump Pump Discharge Pipe - Metal for SP; elastomer covered for SPR. All wetted metal parts are completely rust protected.

Low Pressure Slurry Pump Lower Strainer - Bolted metal or polyurethane for SP; moulded snap-on elastomer for SPR.

Open Impeller Sump Pump Impeller - Double suction impellers (top and bottom entry) induce low axial bearing loads and have heavy deep vanes for aximum wear resistance and for handling large solids. Wear resistant alloys, polyurethane and moulded elastomer impellers
are interchangeable. The impeller is adjusted axially within the casting during assembly by external shims under the bearing housing feet. No further adjustment is necessary.

Rubber Sump Pump Agitation - An external agitator spray connection arrangement can be fitted to the pump as an option. Alternatively, a mechanical agitator is fitted to an extended shaft protruding from the impeller eye.

40pv Spr R55 Sump Pump

Vertical Slurry Pump Wear/ Erosion Resistant Material

SP type rubber vertical slurry pump with rubber liners, slurry pump, Vertical pump, vertical slurry pump, centrifugal pump, centrifugal slurry pump, vertical sump pump, 40PV rubbber slurry pump, 65qv Rubber vertial pump, 100RV rubber slurry pump, vertical rubber pump, vertical mining slurry pump, SPR vertical slurry pump is one type of vertical slurry pump with rubber liners, the rubber material can be natural rubber or elastomer rubbber.

Various requirement for materials in the market, Naipu offering wet end part material as following. Metal A05, A07, A12, A33, A49, A61 and etc. Rubber R08, R26, R33, R55, S01, S21, S31, S42 and etc. Special materail: U01, EPDM, PU, CR, Hastelloy 276-C, Ferralium and etc.

40pv Spr Vertical Pump

SPR Vertical Slurry Pumps Performance Parameters

Type Allowable Max. Power Range Of Performance Impeller
(Kw) Capacity Head Speed Max Efficiency No. of Vanes Diameter

M3/hr L/S m rpm % mm
40 PV-SP 15 19.44-43.2 5.4-12 4.5-28.5 1000-2200 40 5 188
65 QV-SP 30 23.4-111 6.5-30.8 5-29.5 700-1500 50 5 280
100 RV-SP 75 54-289 15-80.3 5-35 500-1200 56 5 370
150 SV-SP 110 108-479.16 30-133.1 8.5-40 500-1000 52 5 450
200 SV-SP 110 189-891 152.5-247.5 6.5-37 400-850 64 5 520
250 TV-SP 200 261-1089 72.5-302.5 7.5-33.5 400-750 60 5 575
300 TV-SP 200 288-1267 80-352 6.5-33 350-700 50 5 610
40 PV-SPR 15 17.28-39.6 4.8-11 4--26 1000-2200 40 5 188
65 QV-SPR 30 22.5-105 6.25-29.15 5.5-30.5 700-1500 51 5 280
100 RV-SPR 75 64.8-285 18-79.2 7.5-36 600-1200 62 5 370

Rubber Vertical Slurry Pump Main Part Number at the Drawing

1. Discharge Pipe
2. Column
3. Strainer
4. Back Liner
5. Impeller
6. Pump Casing
7. Lower Strainer

Sump Pump Part Code No.: PVR4102(E-L), PVR4145, SPR4322, PVR4073, SPR4206R55, SPR4041R55, SPR4092R55...


Naipu Service

1. OEM service: Produce the pump and spare parts according to client's drawing or sample.

2. Selection service: Help customers select the type, size and operating speed of pumps that will perform at the lowest cost.

3. Using service: Offer Design, Installation, Repair and Maintenance solutions and Mine measuring up service.

4. Material service: Interchangeable metal design allow best material choice for any application.

5. After-sale service: Provide lifetime after sale service to solve any question during uses and large stock for standard spare parts.

Any question please contact Katherine Hou freely.

Card 1

  Advertisements



Posted by James wang
e-MailContact company
Company
Shijiazhuang Naipu Pump Co., Ltd.
Address HebeiShijiazhuangNo.368 xinshi North Road
City & ZIP
Shijiazhuang050000
Country
China
Phone
For registered Members only.
Fax
For registered Members only.
Key Customers / Clientele tradegroup in euroup
Company Profile Shijiazhuang Naipu Pump Co.,Ltd is a professional manufacturing enterprise of slurry pumps located in high and new technology development zone. The enterprise has one group of high quality technical and management talent working in Design, R & D, Production, Sales and Services. The technical team consists of talents specialized in hydraulic machinery, casting, heat treatment, engineering, material science and machining.
The company manufactures its products using advanced technique based on well built management and sales & service system. Product quality is guaranteed with various test and inspection facilities..
Naipu is specialized in the manufacture and sales of slurry pump and pump parts, especially the design and manufacture of products made with high abrasive, anti corrosive rubber material, including NP-AH(R).NP-M.NP-HH.NP-SP(R).NP-G series slurry pump, NP-ZG.NP-ZJG series slurry pump, NP-WS series dredging pump and NP-PNJ series slurry pump.
The products are widely used in mining, power, metallurgy, coal, dreading, building material and other Industrial lines to pump concentrate, tailings, sludge and other abrasive, high density slurries.
Meeting customers` technical requirements and with a long lifespan, lower cost and high safety, our products are sold well all over of china and far to southeast Asia, Noth America, South America,Russia and etc.
We are confident that we can offer customers satisfying products and services with our continuous efforts in product research and improvement. We look forward to working with customers domestic and abroad to build a promising future.
We can develop and produce a range of pumps according to different media situation to meet different duty requirment.
There are rubber material (R08 , R12, R26, R33, R38, R55, S03,S12,S31,S21,S51,S52 U01 and etc) , wear resistant metal material( A05,A07, A33, A49, A61 and etc) ,Corrosion Resistant stainless steel material (201,304, 316, 316lL and etc ) , fully meet customers` request.
We can undertake various OEM orders for pumps as well as spare parts customized according to drawings or samples.
